    AquaStar™ BWMS
    The Greatest Advantage of AquaStar™ BWMS

AquaStar™ BWMS

AquaStar™ BWMS Model/Major Specification

Typical Design Standards of AquaStar™ BWMS
활성물질(TRO) Max. 10ppm 기준 .
Model Treatment
Rated Capacity
(m³/hr)
Smart Pipe Unit Electrolyzer Unit Gas Separator Unit Power Consumption (kwh)
(Dimension)xQ'ty
L x W x H (mm)
(Dimension)xQ'ty
L x W x H (mm)
(Dimension)xQ'ty
L x W x H (mm)
32PSU 10PSU
H-150 200 (1370/430/420)x1 (760/600/480)x4 (1100/500/920)x1 9 11
H-200S 350 (1370/530/470)x1 (760/630/520)x4 (1190/530/1150)x1 15 20
H-200-Ex 350

(1370/530/470)x1

(760/630/520)x4 (1190/530/1150)x1 15 20
H-250 500

(1410/530/520)x1

(760/650/570)x4 (1380/580/1350)x1 21 28
H-300 800

(1410/630/570)x1

(800/670/610)x4 (1570/630/1540)x1 34 45
H-300-Ex 800

(1410/630/570)x1

(800/670/610)x4 (1570/630/1540)x1 34 45
H-350 1,100 (1410/630/620)x1 (800/750/670)x4 (1750/670/1750)x1 52 78
H-350-Ex 1,100 (1410/630/620)x1 (800/750/670)x4 (1750/670/1750)x1 52 78
H-400 1,400 (1410/730/670)x1 (800/900/720)x4 (1980/720/1970)x1 66 99
H-450 1,800 (1450/730/720)x1 (800/900/770)x4 (2170/770/2180)x1 85 128
H-550 2,600 (1490/830/820)x1 (840/1040/870)x4 (2550/870/2620)x1 124 186
H-650 3,000 (1490/930/920)x1 (840/1220/970)x4 (2930/970/3010)x1 143 215
H-650-Ex 3,000 (1490/930/920)x1 (840/1220/970)x4 (2930/970/3010)x1 143 215
H-700 4,000 (1490/1030/970)x1 (840/1410/1020)x4 (3110/1020/3170)x1 191 287
H-750 5,000 (1510/1030/1020)x1 (840/1590/1070)x4 (3300/1080/3340)x1 238 357
  • Red Color Models : Ex-Proof Type.
  • 표기 외의 Model들의 Ex-Proof Type 승인은 현재 진행 중에 있습니다.
Since 2012 and continuously Proven Technology by Real Operating Every installed AquaStar™ BWMS is operating now in all the oceans of the world!
Benefits
  • AquaStar™ BWMS is NOT module type.
    Only 1 set of AquaStar™ BWMS is enough up to ballast pump capacity 5,000m³/h.
    All models are designed to have various dimension from 200 m³/h to 5,000 m³/h (Ballast pump capacity), respectively.
    (Not an arrangement of parallel connection of small capacity units.)
  • Functional Guarantee
    • Keeping Performance Standard TRO 8 - 10ppm
  • Anyone Operation
    • Simple & Easy Design
    • No Worries of Frequent Shift of Crews
  • Safe System
    • Safe Emission to the Outside of the Ship by H2 Gas Collecting Equipment
    • Gas Detectors are installed to ensure the safety of vessel and crew.
  • No Filter system
    • No Clogging & Zero Risk Off-hire
    • No Plugging in Ballasting Line

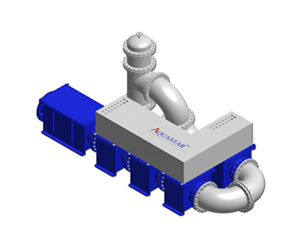

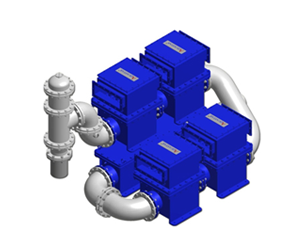

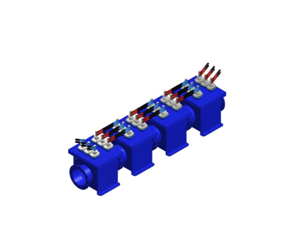

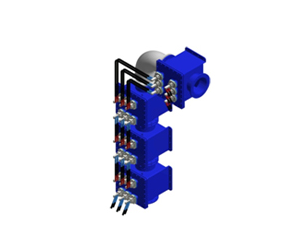

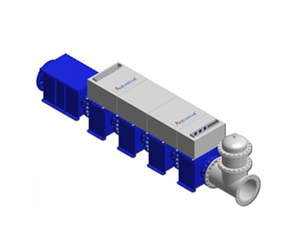

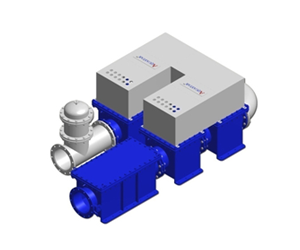

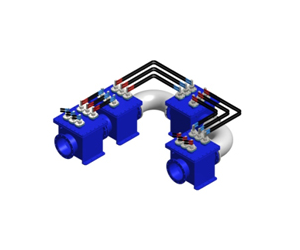

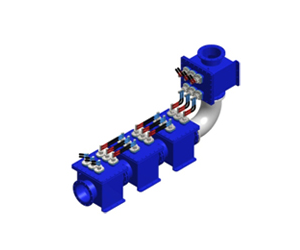

Flexible Design
